Xtreme Clutch

Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

Xtreme Performance - Rigid Ceramic Single Plate Clutch Kit Incl Flywheel

A PARTIRE DA:

€1.207,32 EUR
€1.371,95 EUR €1.207,32 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

-1E

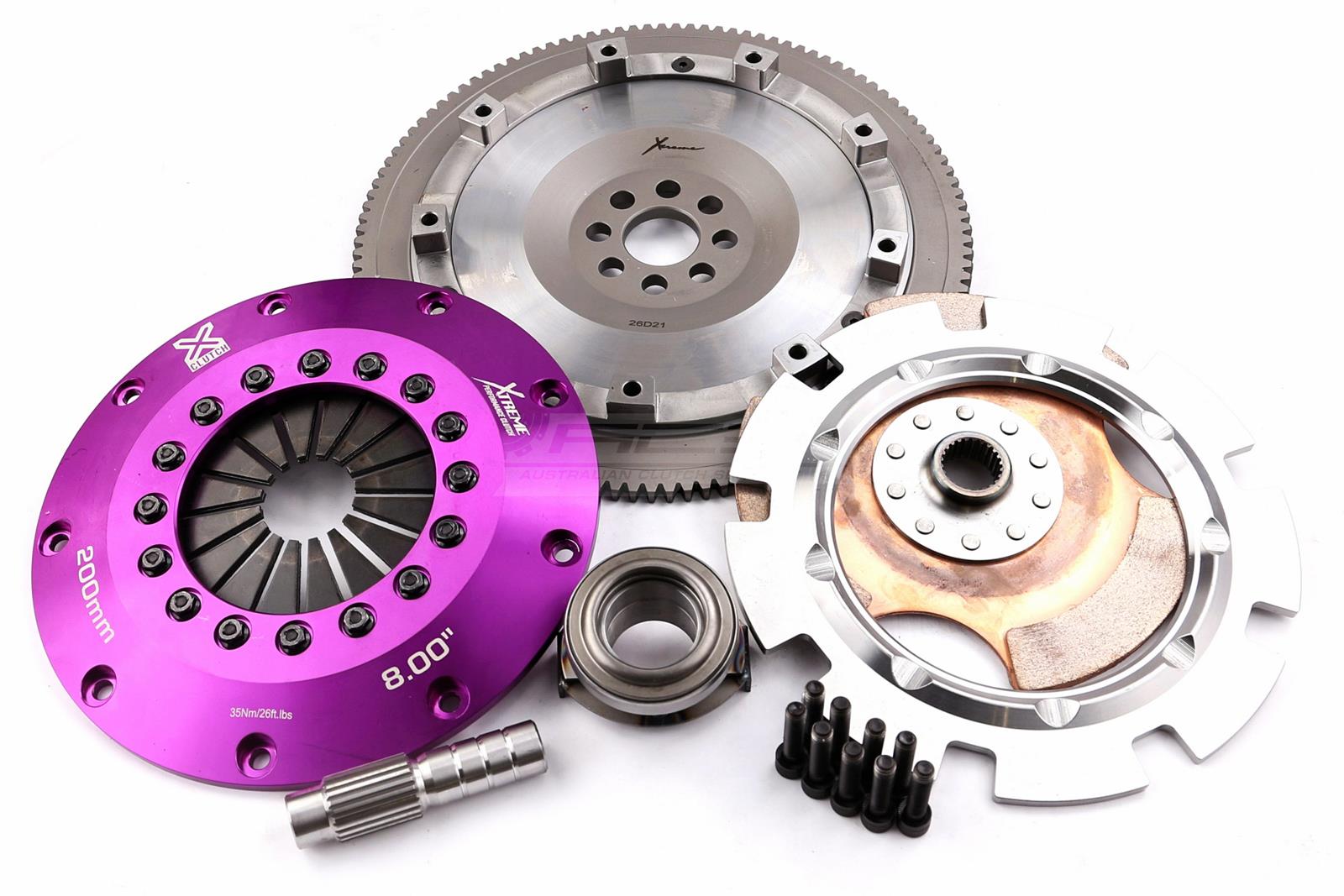

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Clamping Force 1000kg
Torque Rating 900Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 5.15kg
Disc Set Static Mass 0.9kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 5.7mm (0.235")

Product Features:

  • Rigid driven disc
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Torque (Nm) 600
Flywheel Step +2.2mm
Design Single Plate
Stage Track Use Only
Clamp Load 1100Kg
Recommended for Motorsport
Ring Gear Tooth count
