Xtreme Clutch

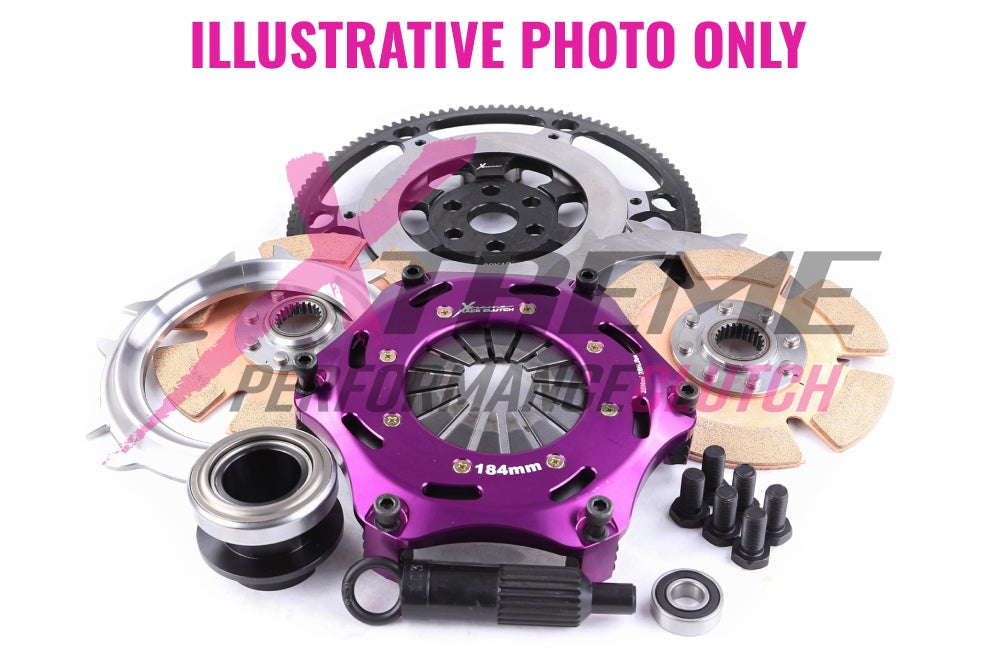

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

A PARTIRE DA:

€1.452,49 EUR
€1.650,56 EUR €1.452,49 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count
Clutch Disc Spline Diameter (mm)
Torque (Nm) 1210
Flywheel Step
Design Twin Plate
Stage Multiplate - track use only
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
