Xtreme Clutch

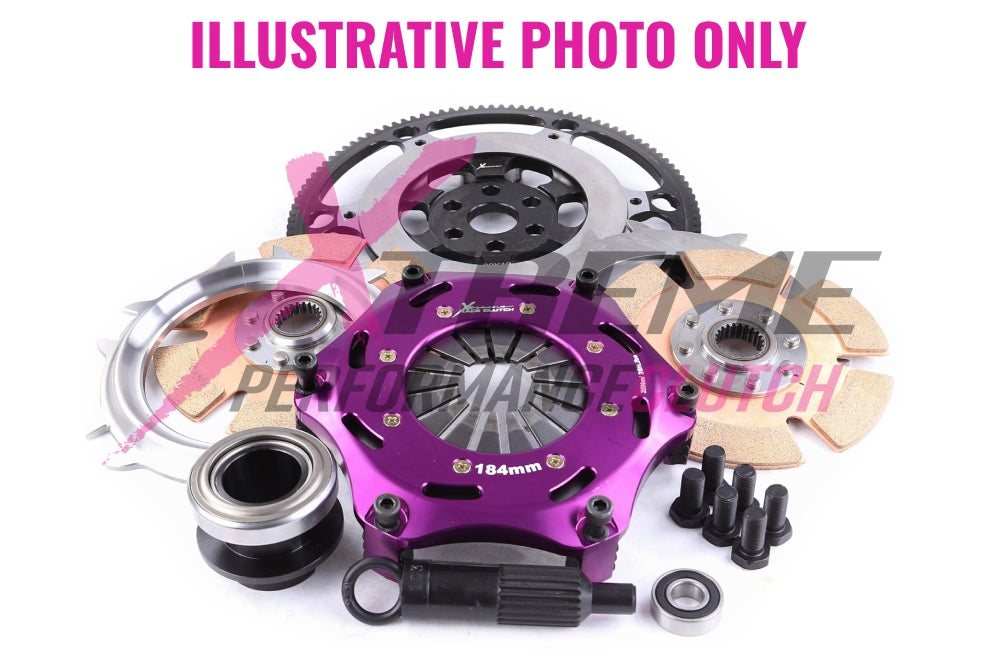

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
A PARTIRE DA:
Prezzo di listino
€2.369,47 EUR
Prezzo di listino
€2.692,58 EUR
Prezzo scontato
€2.369,47 EUR
Imposte incluse.
Spese di spedizione calcolate al check-out.
Quantità
Impossibile caricare la disponibilità di ritiro
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 184 |
| Clutch Disc Spline Count | 21 |
| Clutch Disc Spline Diameter (mm) | 23.8 |
| Torque (Nm) | 1060 |
| Flywheel Step | +2.5mm |
| Design | Twin Plate |
| Stage | Multiplate - track use only |
| Clamp Load | |
| Recommended for | Motorsport |
| Ring Gear Tooth count |
