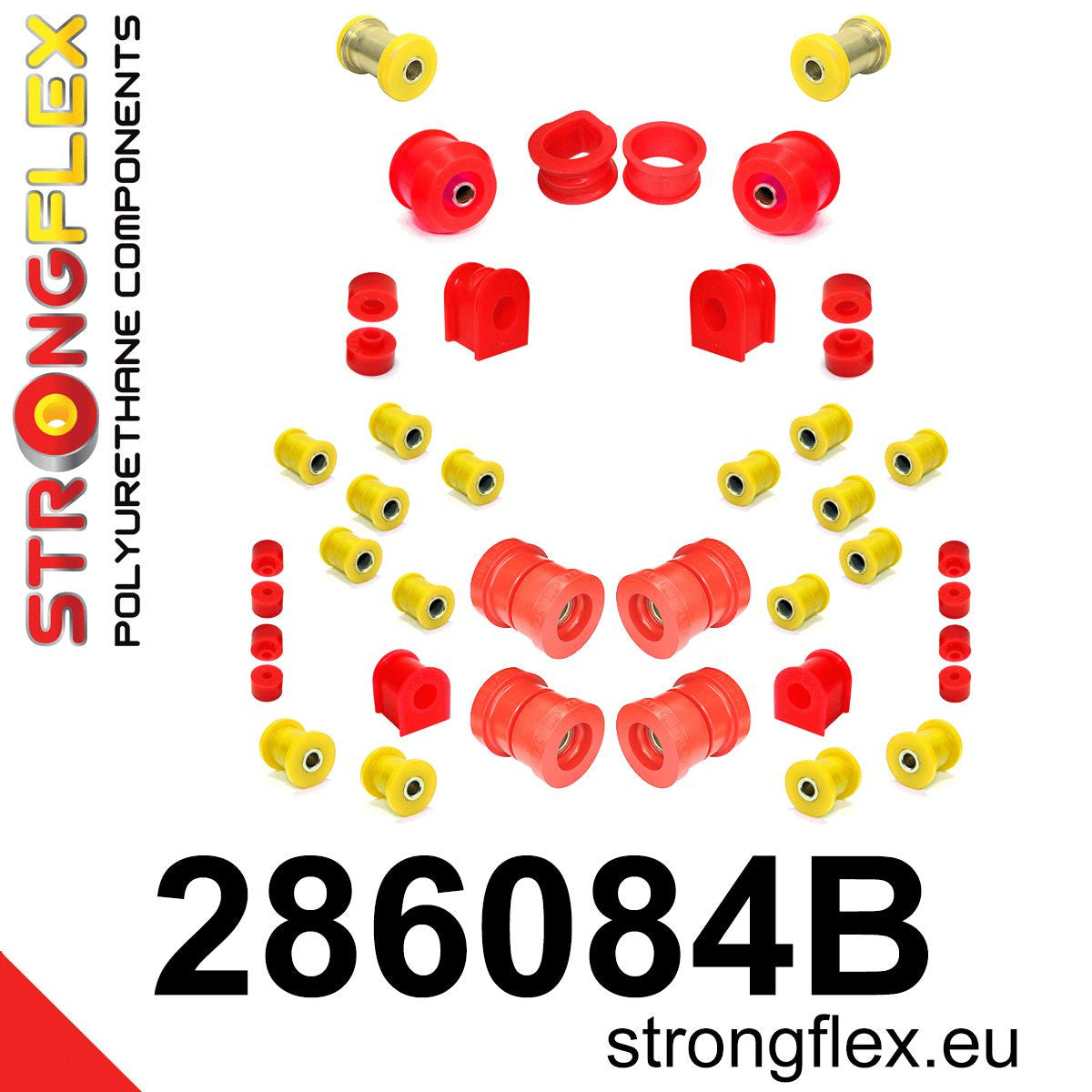

286084B Full suspension bush kit Standard (Red) Nissan S-chassis (180SX / 200SX / 240SX / Silvia) V (88-98) S13

Reference: 286084B

Product name: Full suspension bush kit

Fits to:

• Nissan Cefiro (88-92) A31 RWD
• Nissan Laurel VI (88-94) A31/C33
• Nissan S-chassis (180SX / 200SX / 240SX / Silvia) V (88-98) S13

Include:

• 2x 281207B: Front anti roll bar bush


• 1x 281261B: Steering rack mount bush
  45mm/48mm/50mm

• 2x 281262B: Front lower radius arm to chassis bush


• 2x 281263A: Front inner track control arm bush 34mm SPORT
  or
• 2x 281397A: Front inner track control arm bush 38mm SPORT


• 2x 281265B: Front anti roll bar link bush
• 12x 281218A: Rear arm bush SPORT
• 4x 281267A: Rear lower control arm bush SPORT
• 2x 281268B: Rear anti roll bar bush
• 4x 281269B: Rear anti roll bar link bush
• 4x 281270B: Rear beam mounting bush RWD

Diagrams:

• D2803

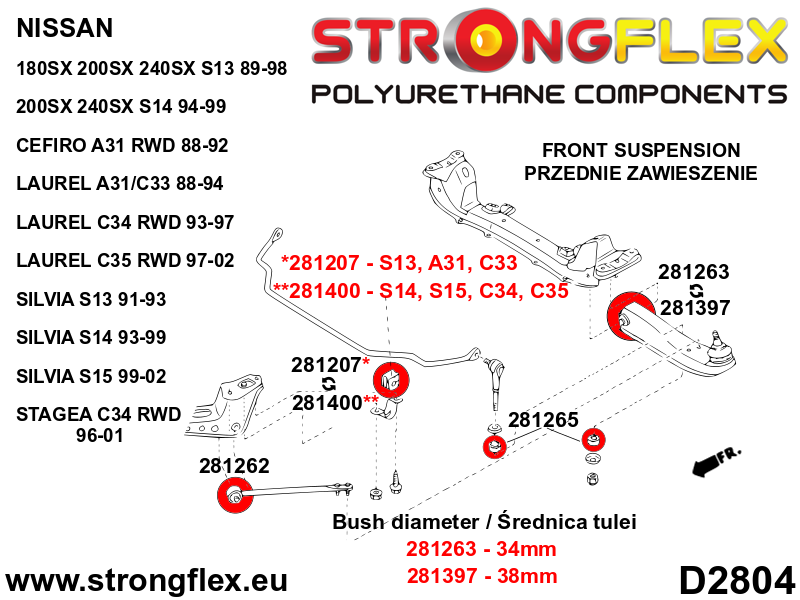

• D2804

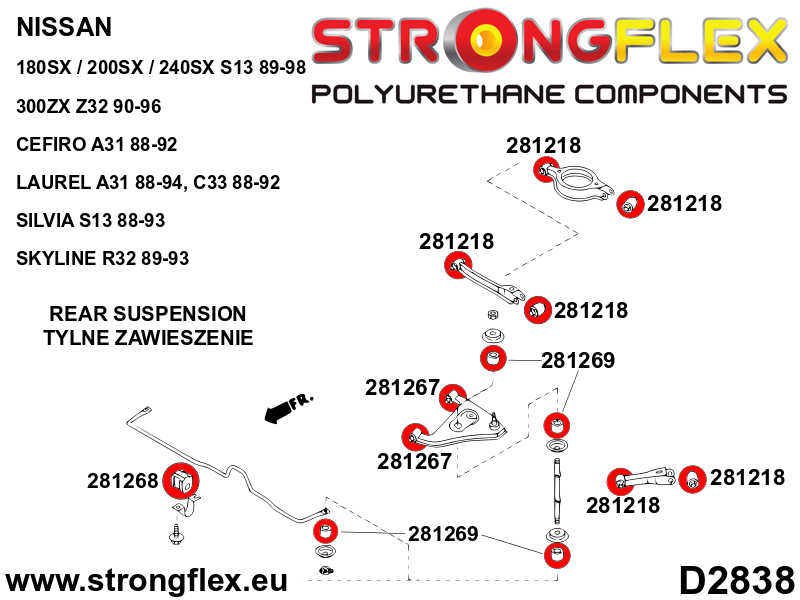

• D2838

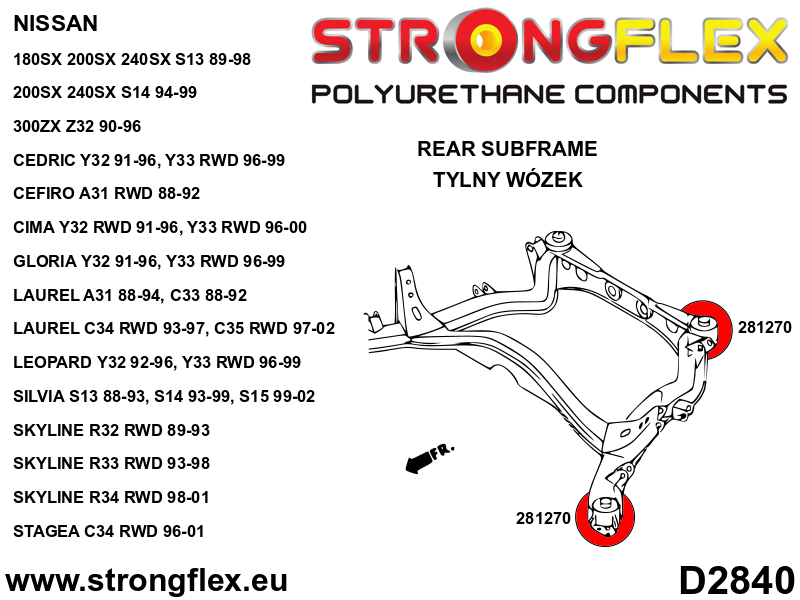

• D2840

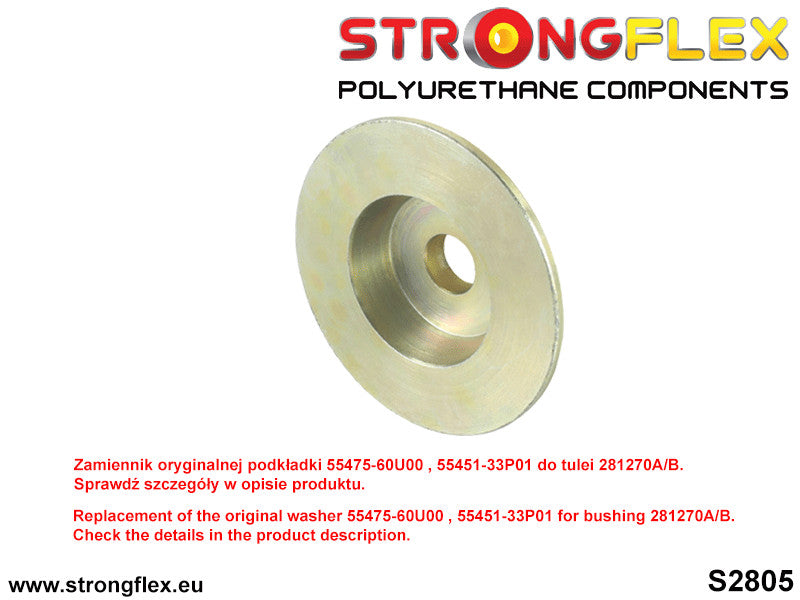

• S2805

Notes

• There are two different bushes of front wishbone: Ø34mm (281263) and Ø38mm (281397).
  Before placing order order, please check bushes in your model.


• Select the appropriate diameter of the steering gear bushing Ø45mm/Ø48mm/Ø50mm.


• Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01.
  You can buy a replacement for the original washer matched to our bush.
  In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 35

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Opzioni aggiuntive:

• STEERING rack bush: 45mm, 48mm, 50mm
• Front lower ARM bush: 281263 - 34mm, 281397 - 38mm
• Subframe bush washer: 0 pcs, 2 pcs, 4 pcs

Specifica nelle note dell'ordine.
