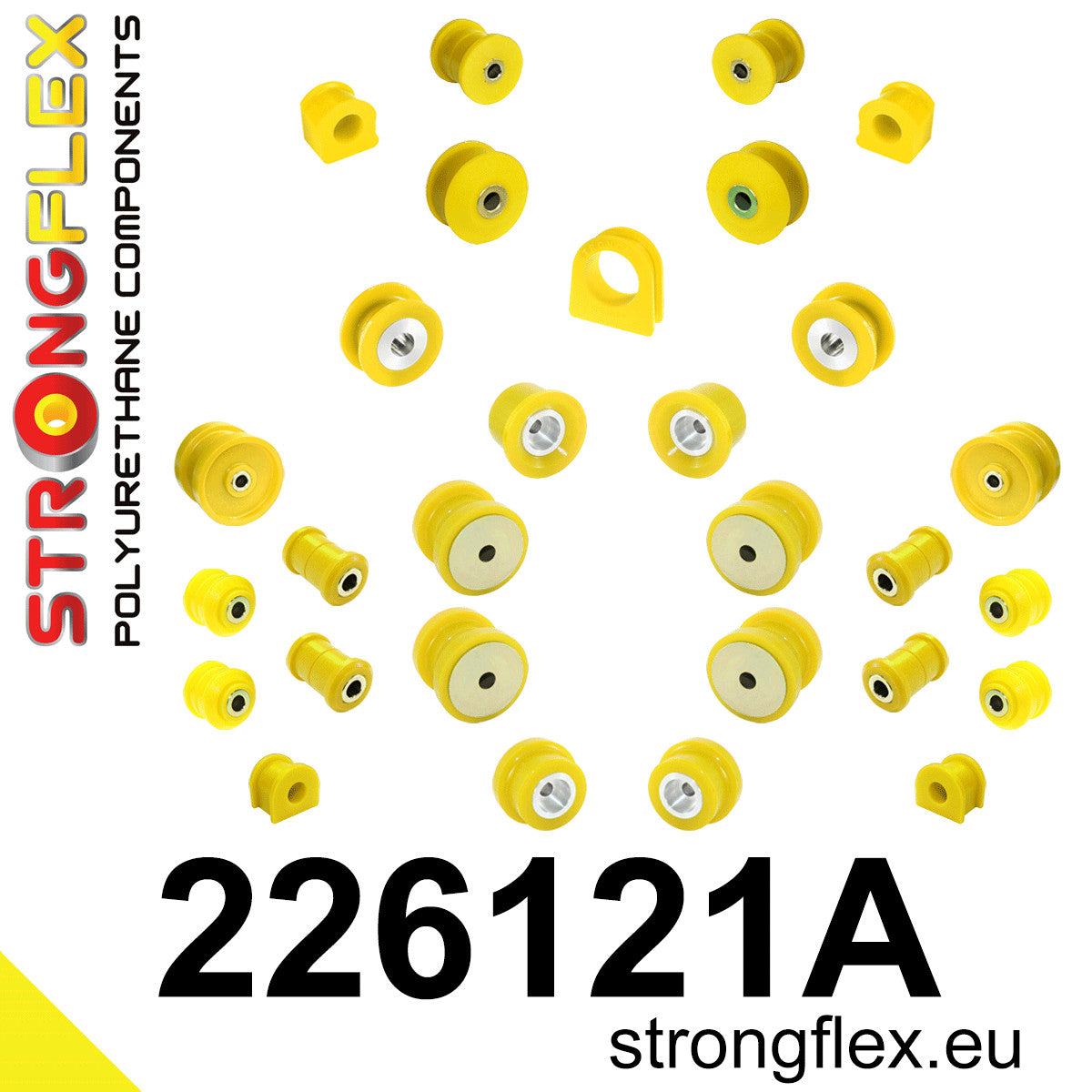

226121A Full suspension bush kit SPORT Sport (Yellow) Audi A3 / S3 / RS3 I (96-03) 8L

Reference: 226121A

Product name: Full suspension bush kit SPORT

Fits to:

• Audi A3 I (96-03) 8L Quattro
• Audi S3 I (96-03) 8L
• Audi TT 8N (99-06) Quattro


• Seat Leon I (99-05) 1M 4x4
• Seat Leon I (99-05) 1M Cupra R 4x4


• Škoda Octavia I (96-10) 1U 4x4


• Volkswagen Bora I (98-05) 1J 4Motion
• Volkswagen Golf IV (97-10) 1J 4motion
• Volkswagen Golf IV (02-03) 1J R32
• Volkswagen New Beetle (97-10) RSi

Include:

• 2x 221072A: Front wishbone - front bush 30mm SPORT
  or
• 2x 221343A: Front wishbone - front bush 45mm SPORT


• 2x 221077A: Front wishbone - rear bush SPORT
  or
• 2x 221344A: Front wishbone - rear bush SPORT


• 2x 221088A: Front anti roll bar bush SPORT
  or
• 2x 221089A: Front anti roll bar bush SPORT


• 0/4x 221084A: Anti roll bar link bush SPORT


• 2x 021784A: Front subframe bush SPORT


• 4x 221371A: Rear wishbone inner bush SPORT
• 4x 221940A: Rear tie bar to hub bush SPORT
• 2x 221372A: Rear lower wishbone front mounting bush SPORT
• 2x 221445A: Rear anti roll bar bush SPORT


• 2x 221862A: Rear diff mount - front bush SPORT
• 2x 221863A: Rear diff mount - rear bush SPORT
• 4x 221864A: Rear subframe bush SPORT


• 1x 221965A: Steering rack mount bush SPORT


• 0/2x 221899A: Front shock top mount bush SPORT

Diagrams:

• D0208
• D2203
• D2207
• D2208
• D2216
• D2223
• S2201
• S2202
• S2206
• S2207

Notes

• In models in which "cast steel" wishbones were installed, there are two types of front wishbone bushings.
  Earlier models were equipped with sleeves with a diameter of Ø30mm (221072), while later models had sleeves with a diameter of Ø45mm (221343). The rear bushing for this control arm is 221344.
  For "stamped steel/sheet metal" wishbones, matching bushings are: 221072 and 221077.

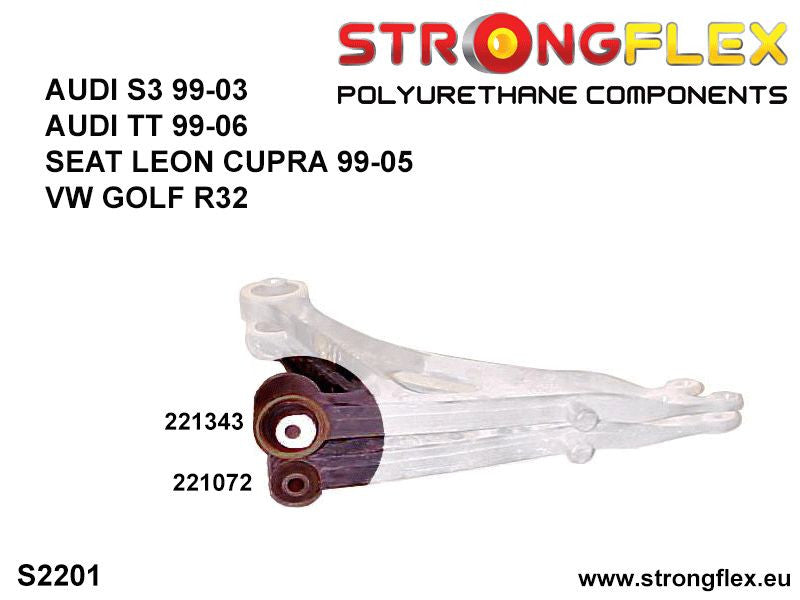

  Before placing an order, please check the type of swing arm carefully. In the case of a "steel cast" swing arm, also check the diameter of the front bush (See photo S2201)!

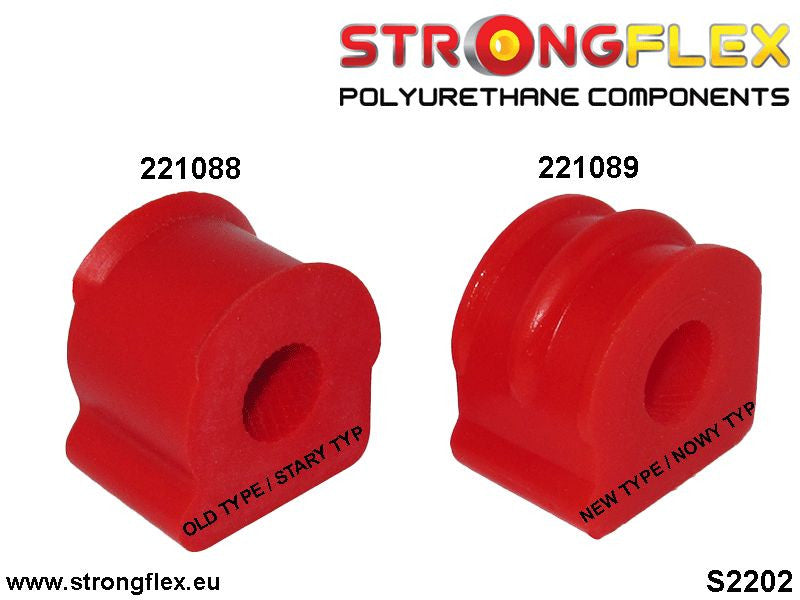

• There are two types of front stabilizer bushings.
  OLD TYPE - 221088 or NEW TYPE - 221089
  See photo S2202


• Depending on the type of front stabilizer link, select the correct number of bushings 221084 (0 or 4 pieces)


• Front shock top mount bush 221899A:
  Depending on your needs, choose the appropriate quantity 0pcs / 2pcs.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 29/31/33/35

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Opzioni aggiuntive:

• Front ARB type: Old type, New type
• Front ARM front bush: 30mm - 221072, 45mm - 221343
• Front ARM rear bush: 221344A, 221077A
• ARB link bush: 0 x 221084, 4 x 221084
• 221899: 0 pc, 2 pcs

Specifica nelle note dell'ordine.
