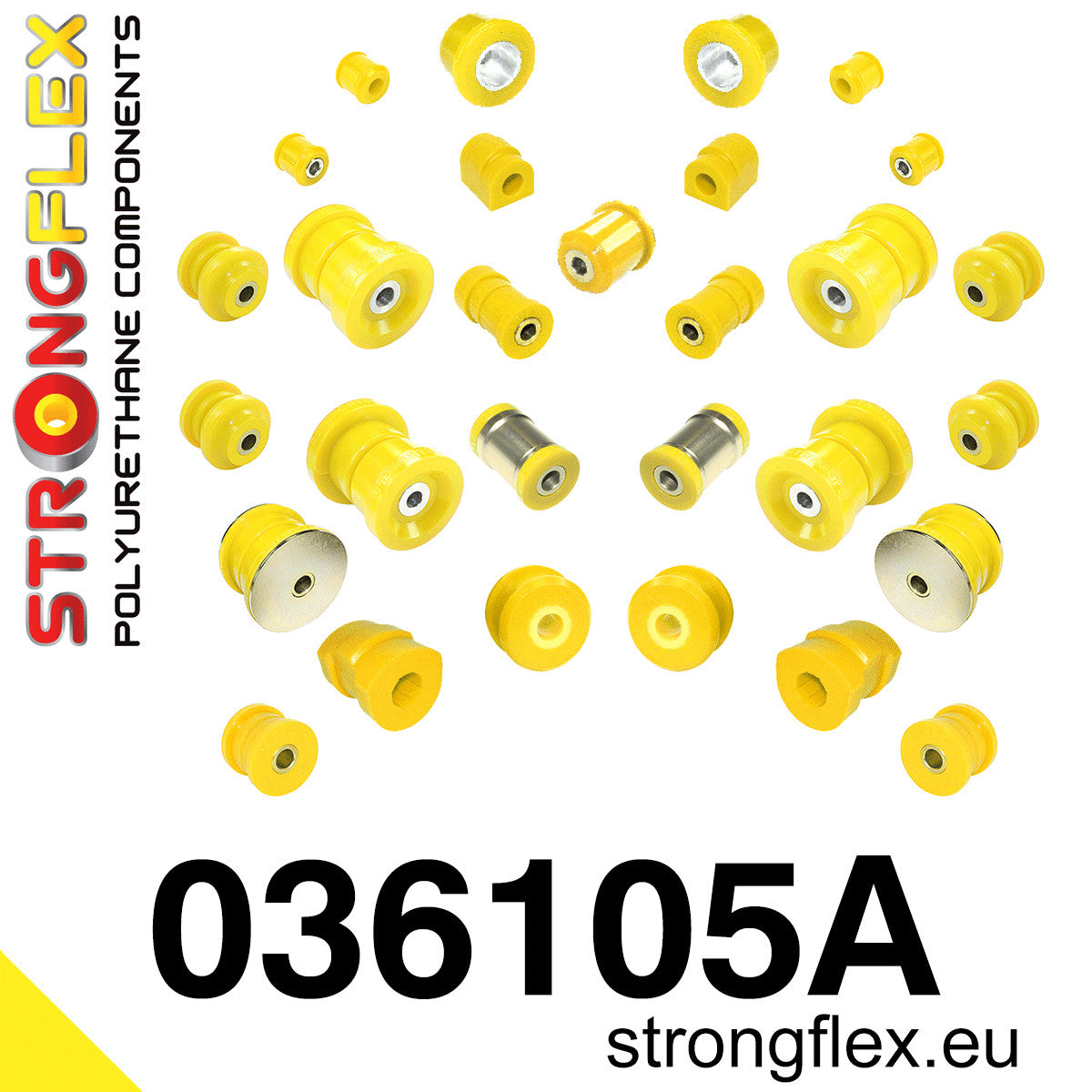

036105A Full suspension bush kit SPORT Sport (Yellow) BMW Seria 3 III (90-99) E36

Reference: 036105A

Product name: Full suspension bush kit SPORT

Fits to:

• BMW 3 III (90-99) E36 Cabrio Coupe Sedan Touring / M3

Include:

• 2x 031195A: Front lower arm bush - centric 60mm SPORT
  or
• 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
  or
• 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
  or
• 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT


• 2x 031183A: Front anti roll bar bush SPORT


• 0/2x 031525A: Front anti roll bar link bush SPORT


• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT


• 2/4x 031175A: Rear arm - outer bush SPORT


• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031167A: Anti roll bar bush front / rear SPORT
• 2x 031789A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031790A: Rear anti roll bar link to arm bush SPORT


• 2x 031350A: Rear subframe - front bush SPORT
• 2x 031351A: Rear subframe - front bush SPORT


• 1x 031750A: Rear differential front mount bush SPORT
  or
• 1x 031736A: Rear differential front mount bush M3 EVO SPORT


• 2x 031587A: Rear differential rear mount bush SPORT

Diagrams:

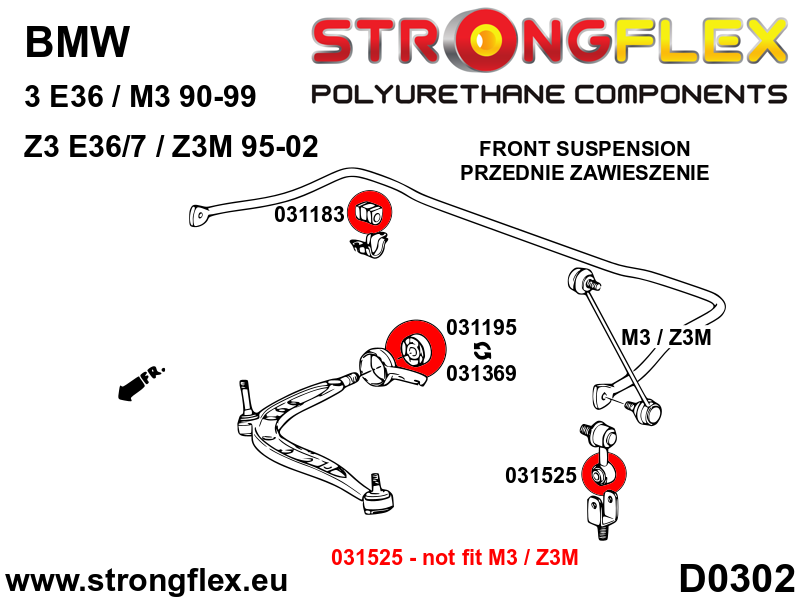

• D0302
• D0322

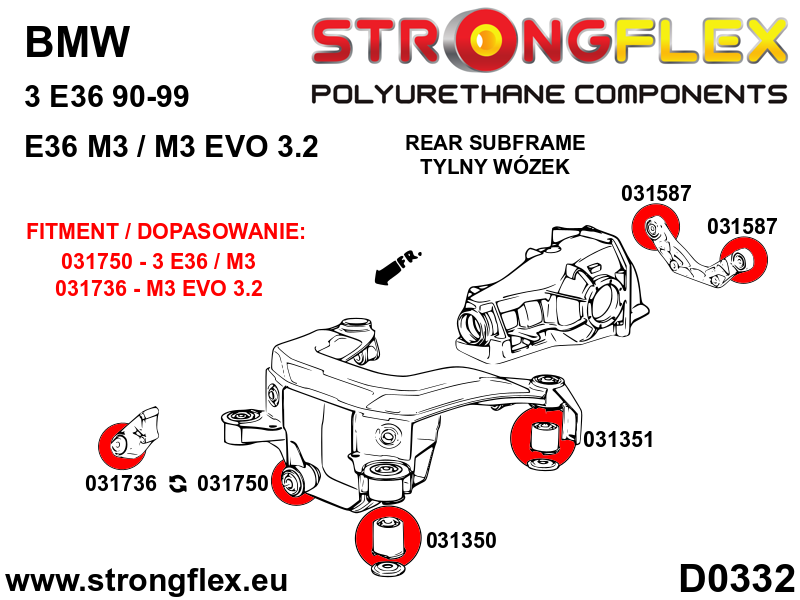

• D0332

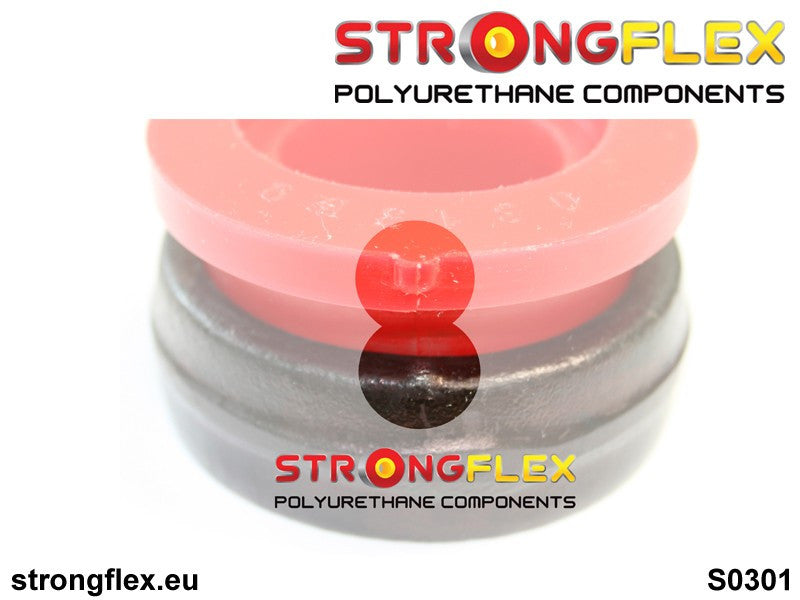

• S0301
• S0306

Notes

• Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 model.


• Front wishbone bush - rear:
  031195 - centric 60mm
  031369 - eccentric 60mm
  031737 - centric 60mm E46 wishbone
  031738 - eccentric 60mm E46 wishbone


• Rear differential bush - front:

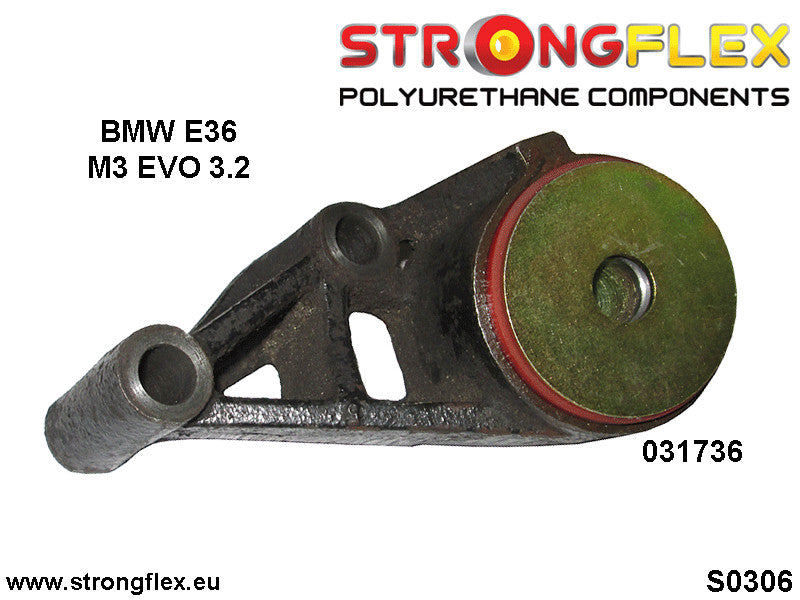

  If you have an E36 M3 EVO 3.2 model where the differential is mounted on a separate bracket, choose bushes 031736. For other E36 models, bush 031750 fits. See the attached photo S0306.


• For bushing 031175:
  This bushing is not suitable for the upper steering knuckle mount on significantly lowered vehicles with a modified steering knuckle angle. Select the appropriate quantity: 2 or 4 pieces.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 25/27/29

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Opzioni aggiuntive:

• Front ARM rear bush: 031195, 031369, 031737, 031738
• ARB link bush: - 031525 x 2, + 031525 x 2
• Rear DIFF bush: 031750 (E36), 031736 (M3 EVO)
• 031175: 2 pcs, 4 pcs

Specifica nelle note dell'ordine.

Rear ARB diameter: 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 20mm, 19mm, 21mm, 22mm, 23mm, Custom - specifica nelle note.
