Xtreme Clutch

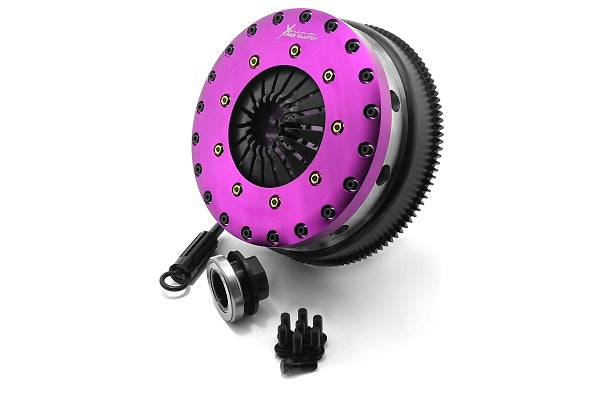

Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm

Xtreme Clutch Conversion kit - TOYOTA JZ - BMW 10x35mm

A PARTIRE DA:

€2.841,84 EUR
€3.229,36 EUR €2.841,84 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

-2P

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1675Nm 1675Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 7.8kg 7.8kg
Disc Set Static Mass 1.75kg 1.75kg
Friction Thickness New 7.47mm (0.305") 7.47mm (0.305")
Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285")

Product Features:

  • Push type billet alloy cover
  • Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Carbon Friction Stable at extreme temperatures
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 10
Clutch Disc Spline Diameter (mm) 35
Torque (Nm) 1670
Flywheel Step +3.8mm
Design Twin Plate
Stage Multiplate - track use only
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
